Main Giga GA-A320M-S2H

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

GA-A320M-S2H

CPU hỗ trợ

AMD

Chipset

AMD A320

RAM hỗ trợ

2 x DDR4 memory slots, support up to 32GB DDR4 2667/2400/2133 MHz

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

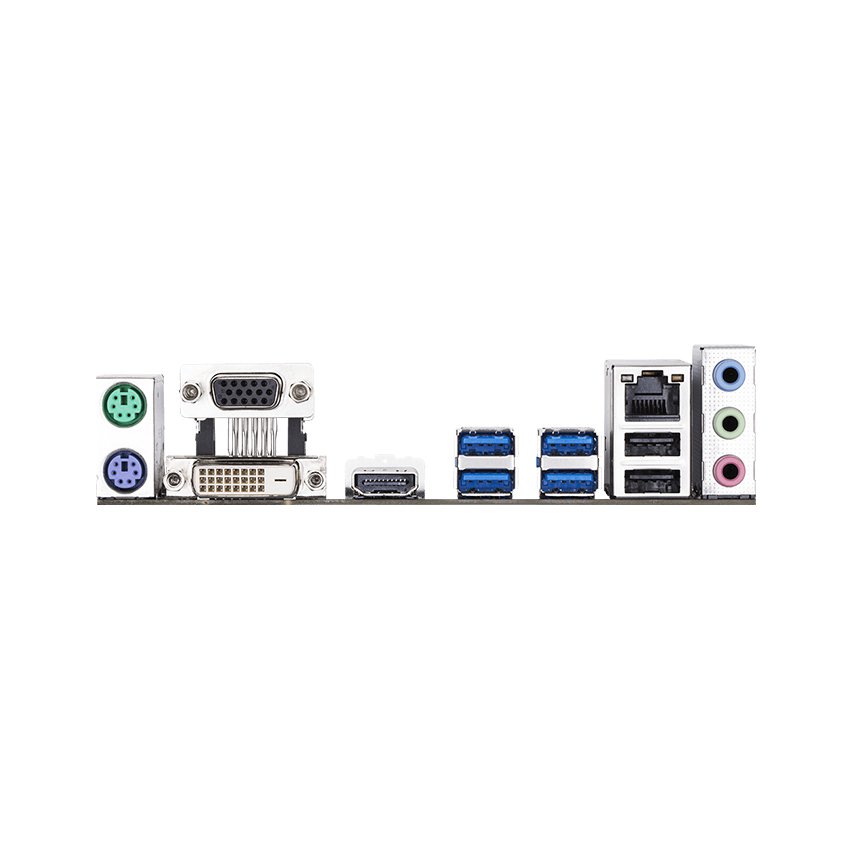

Cổng kết nối (Back Panel)

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

LAN / Wireless

Realtek® GbE LAN chip (10/100/1000 Mbit)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 19.5cm
